Brand Name DECKAS

Type Controller

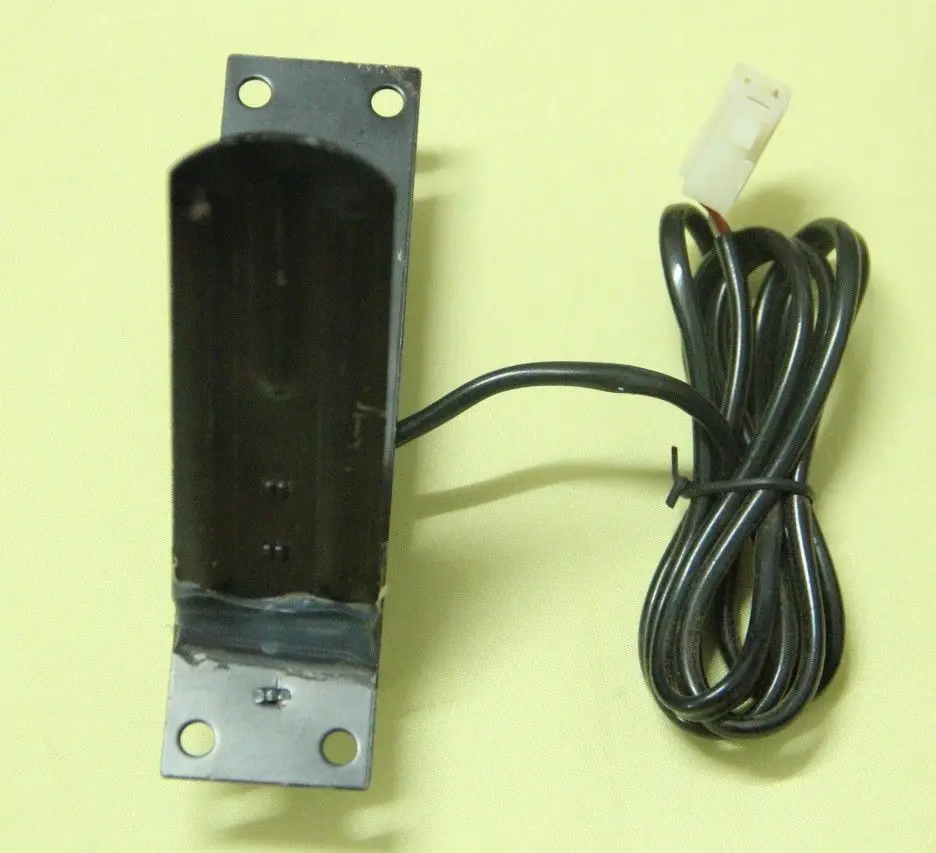

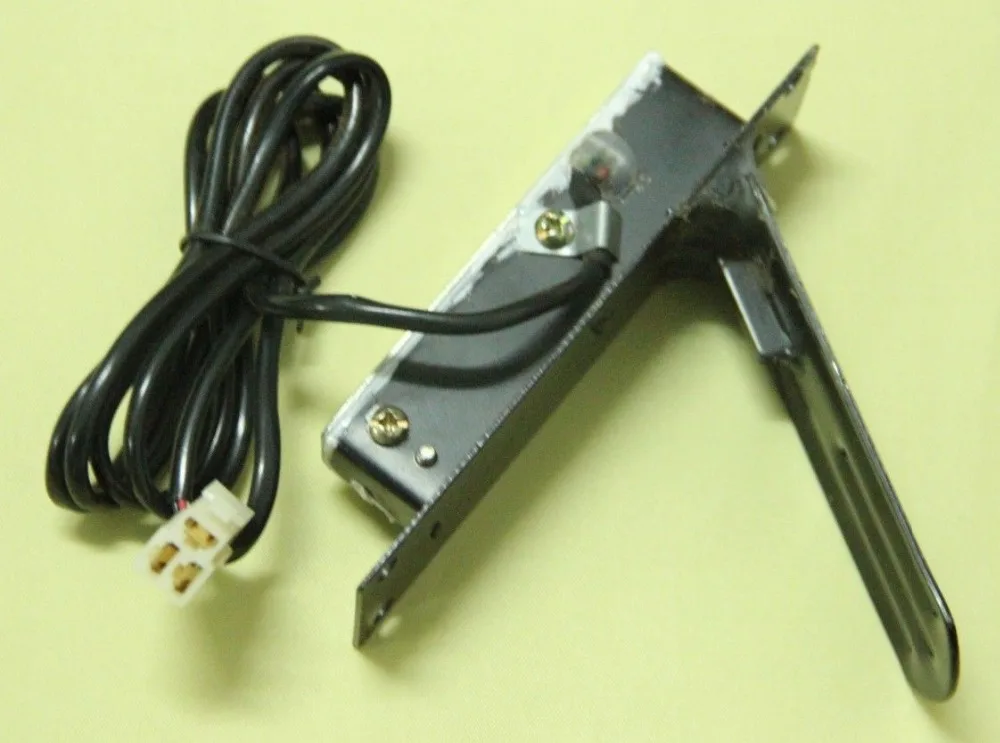

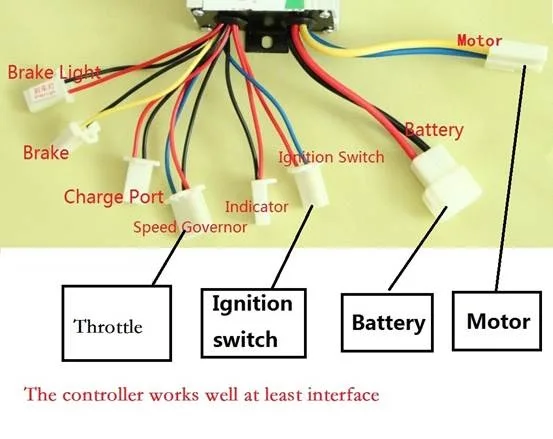

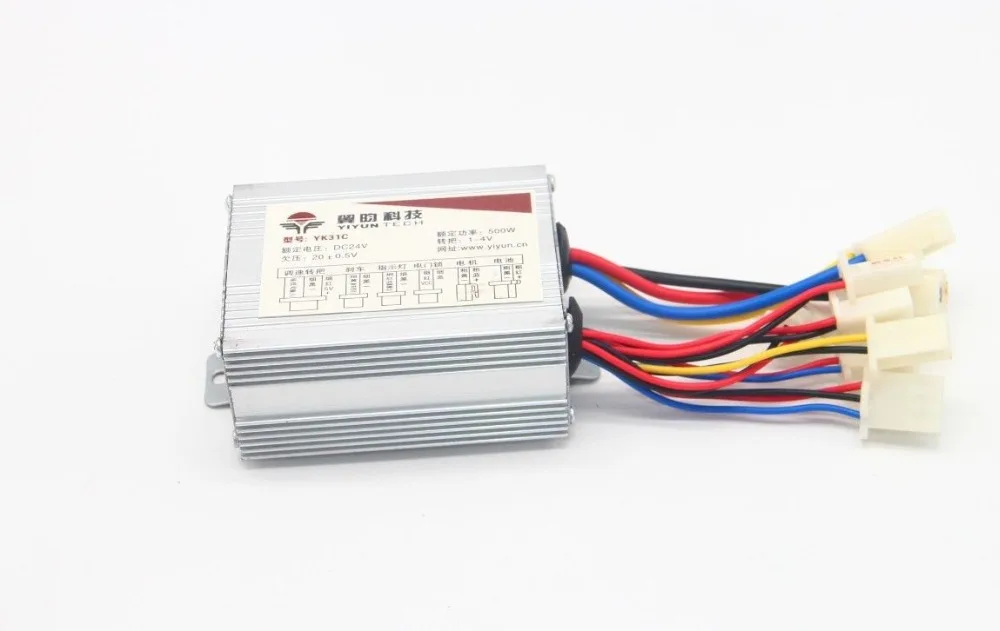

24V 500W Motor Brushed Controller Speed Control Box & Foot Throttle for Electric Bike Vehicle& Scooter Package Included 1 X 24V 500W Motor Brushed Controller 1 x Foot Throttle Note: The item are included DC24V 500W brushed controller and foot throttle. The controller is used for DC 24V 500W the brushed motor (with 2 power wires) , is not used for the brushless motor (with 3 power wires and hall line). Controller Features : motor brush controller for Electric bicycle & scooter rated voltage: dc24 v Current limit : 21A rated power:500 W matching motor: used for dc brushed motor(with two power wire),be not suitable for brushless motor(with three power wire and hall line). Under Voltage Protection: 20V Throttle voltage: 1V to 4.2V Dimensions: 7.35cm(L)x5.95cm(W)x3.55cm(H) Operation Notice: Be connected to battery, motor, and throttle, and Ignition Switch. Switch on Ignition Switch, the motor will works Wires Interface Definition Battery : Thick Black (Power Negative) /Thick Red (Power Positive) Motor : Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Ignition Switch :Thin Red(VCC)/Thin Blue Indicator : Thin red (Indicator power output) /thin black (indicator negative) Brake :thin yellow (Brake signal)/thin black(Negative Power) Throttle :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power) Charge Port : Thin red (charge input power Positive) /thin black (Power negative) Brake Light: Thin red (power Positive) /thin black (Power negative) Throttle Feature Shell Color: Black Output voltage: 0.8 - 4.2V Pedal rotation angle: 30 degrees Output format: Positive control wire interface (Red: +5V; Black: Gnd; Green:Speed Adjust Signal ) Cable length is approximately 130cm (51”) Wiring Diagram: Throttle Controller Description Red connects to Red Voltage 4.3 to 5.0 Volts Black connects to Black Ground Green connects to Blue Speed Adjusting Signal (0.8 to 4.3 Volts)
